SKID M Solution Comptage Multiphasique
SKID M Logo


Multiphasic Skid for fluid measurement
The only triphasic metering system, wells testing Instantaneous measurement of OIL, WATER and GAS flows

PDF Leaflet PDF General Specifications

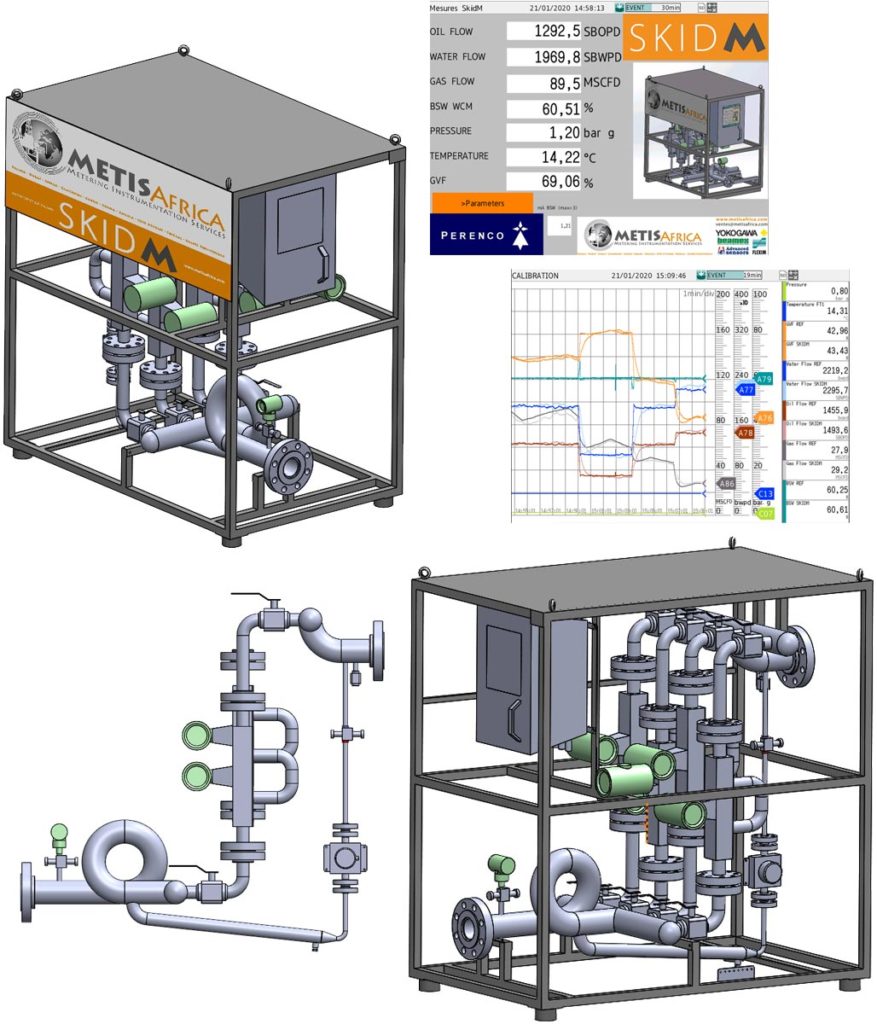

The SKID M developped by METIS Africa, is a multiphasic skid designed for the measurement of fluids which come out from oil wells. In those drillings, there is water, oil, and gas. Today, it is difficult to measure those 3 components at the same time without dissociating them. The SKID M is the sole system able to measure and calculate the water, the oil and the gas flows, instantly, without phase separation (method commonly used on platforms where the 3 phases are separated in tank separators in order to measure quantity of each phase individually), and without radioactive source (other method much more expensive, constraining and which does not work on smaller flows that represent 80% of existing applications).

The SKID M from METIS Africa is available in 1-line configuration or multi-line in parallel. It is equipped with the latest model of mass flowmeter from YOKOGAWA, the Coriolis ROTAMASS TI and with the video recorder YOKOGAWA GX20 including touch screen.
